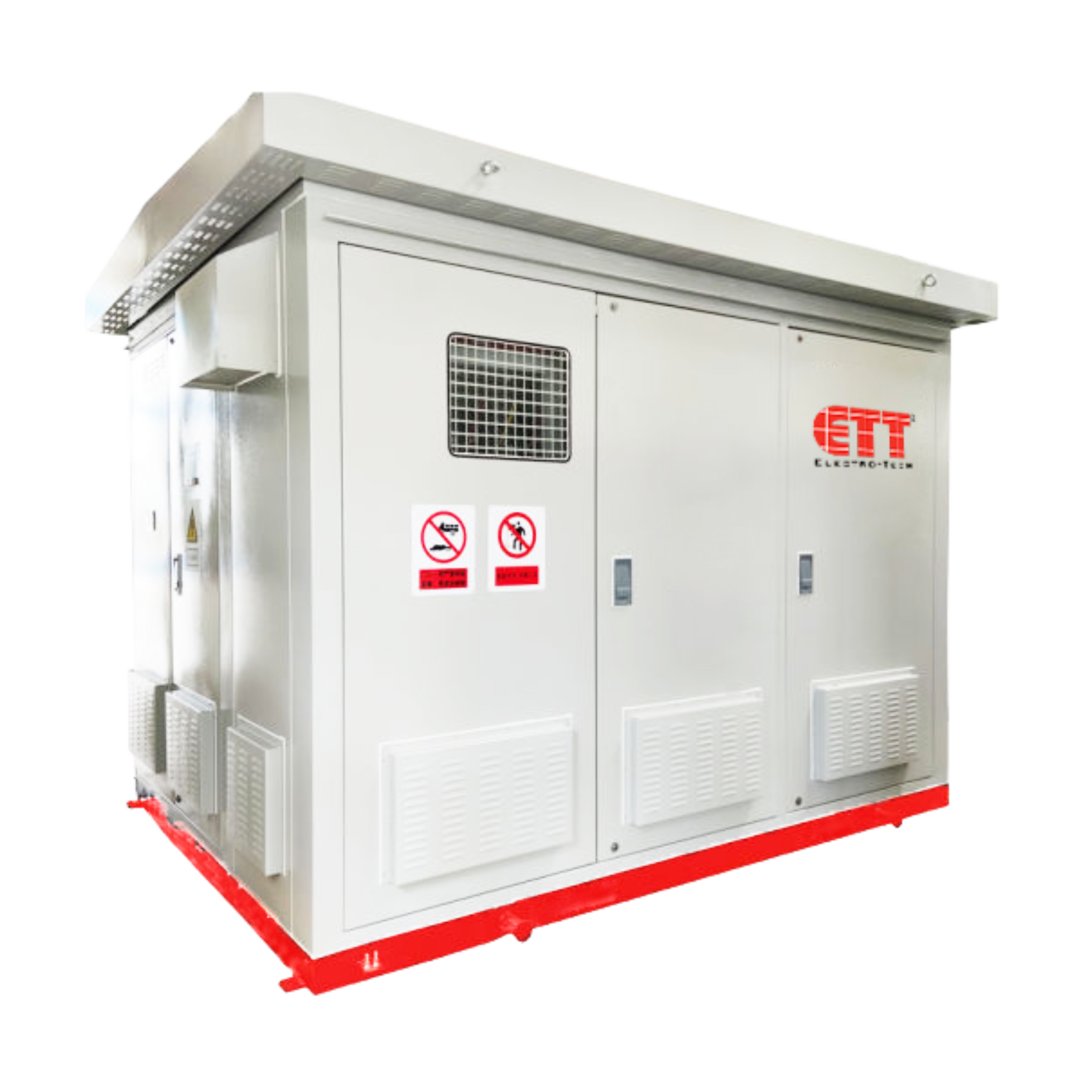

Compact Substation Transformer

Product Overview

ETT’s Compact Substation Transformers (CSS) are designed to provide reliable and efficient power distribution in compact spaces. These transformers are ideal for urban areas, industrial plants, and commercial complexes, ensuring safe and uninterrupted power supply.


Technical Specifications

• Type: Dry Type Cast Resin / Dry Type VPI

• Rating: 315 kVA, 500 kVA, 630 kVA, 1000 kVA, 1250 kVA

• Voltage Class: 11 kV, 33 kV

• Operation: Indoor / Outdoor

• Cooling Method: Natural Air Cooled

Key Features

• Manufactured as per IEC 62271-202 or other relevant international standards for maximum reliability and safety.

• Engineered to fit in limited spaces, making it ideal for high-density urban setups.

• Designed with a metal-clad enclosure featuring separate compartments for HV, LV, and transformer sections to ensure safety and ease of maintenance.

• Built with low-loss core materials and high-grade copper/aluminum windings to minimize energy loss.

• Available in multiple voltage levels, adaptable to various power distribution networks.

• Suitable for both indoor and outdoor installations, featuring IP-rated enclosures to withstand harsh environmental conditions.

Applications

• Industrial plants – Efficient power distribution for manufacturing units

• Commercial complexes – Reliable energy solutions for large commercial establishments

• Urban infrastructure – Space-saving power distribution for metro stations, residential areas, and smart cities
